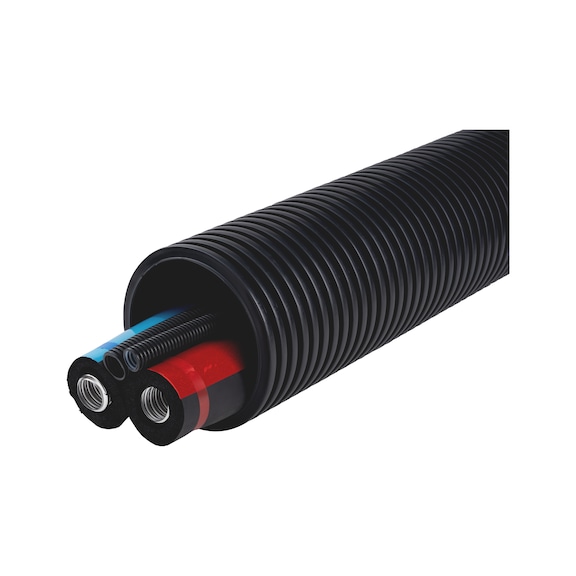

Stainless steel heat pump pipe - CORPIP-SST-HEATPUMP-(2XDN32/200)X10M

Stainless steel heat pump pipe

Stainless steel corrugated pipe double line
CORPIP-SST-HEATPUMP-(2XDN32/200)X10M

Art.-no. 0886615010

EAN 4099618247705

All versions

-,--
price per selected packing unit | Individual prices for customers after login
Stainless steel heat pump pipe

Art.-no. 0886615010

-,--
price per selected packing unit
Quantity
PU
x 10 m

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

Flexible, pre-insulated stainless steel corrugated pipes with empty pipes for the underground connection of air-to-water heat pumps
  • Quick and easy installation thanks to the combination of service and empty pipes

  • Little waste, because the product can be ordered by the metre

  • The flexibility of the stainless steel corrugated pipe (without restoring forces) allows for easier laying of the system as a whole

  • The stainless steel corrugated pipe can be easily bent by hand (curved part without fitting) while remaining robust and kink-resistant for greater flexibility when connecting to heat pumps/heating circuits

  • Marked pipe to prevent confusion between supply and return

  • Two empty pipes for routing the power and control lines

  • Narrow bending radius

  • Flexible, parallel corrugated jacket pipe with high mechanical resistance
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

DN nominal width

DN 32

Length

10 m

Bending radius

50 cm

Material of pipe

Stainless steel AISI 316

Wall thickness pipe

0.35 mm

Outer diameter

41.0 mm

Bending radius stainless steel corrugated pipe

6 cm

Min./max. operating temperature

0 to 110 °C

Operating pressure max./conditions

5 bar / at 20°C

Material of jacket pipe

PE

Outer diameter of jacket pipe

200 mm

Min. processing temperature

5 °C

Nominal width DN of conduit

25 mm

Nominal width DN of conduit 2

32 mm

Material of insulation

EPDM

Insulating-material thickness

19 mm

Heat conductance λ insulation / conditions

0.042 W/(m*K) / at 40°C average temperature, in accordance with DIN EN ISO 8497/DIN 52613

Transport dimension

120 x 120 x 86 cm

Free of halogenated blowing agents (< 0.1 %)

Yes

Weight

19.5 kg

Free of hexabromocyclododecane (< 0.1 %)

Yes

SVHC according to REACH < 0.1 %

Yes

Free of short-chain chlorinated paraffins SCCP ( 0,1 %)

Yes

Free of medium-chain chlorinated paraffins MCCP( 0,1 %)

Yes

Free of long-chain chlorinated paraffins LCCP ( 0,1 %)

No

Free of antimony trioxide ( 0.1 %)

No

Free of boron tris-(2-carboxyethyl)-phosphine (< 0.1 %)

Yes

Free of polybrominated diphenyl ethers (< 0.1 %)

Yes

Free of polybrominated biphenyls (< 0.1 %)

Yes

Free of boron compounds (< 0.1 %)

Yes

Free of lead (< 0.1 %)

Yes

Free of tin (< 0.1 %)

Yes

Free of scrap tyre granules

Yes

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Connection set consisting of four transitions and two end caps
Connection set consisting of four transitions and two end caps

CON-SET1-CORPIP-SST-HEATPUMP-DN32

For connecting the stainless steel heat pump pipe to the heat pump/heating circuit
x 1 pcs
Connection set consisting of four adapter fittings, one end piece (gas-tight, radon-tight and watertight) and one rubber cap
Connection set consisting of four adapter fittings, one end piece (gas-tight, radon-tight and watertight) and one rubber cap

CON-SET2-CORPIP-SST-HEATPUMP-DN32

x 1 pcs
Transition
Transition

TRANSITION-CORPIP-SST-HP-DN32XMT1 1/4IN

For connecting the stainless steel heat pump pipe to the heat pump or heating circuit
x 1 pcs
Rubber end cap
Rubber end cap

ENDCAP-RBR-CORPIP-SST-HP-DN32/DN40X200MM

For sealing the front ends of the stainless steel heat pump pipe in the building/for non-pressurised water
x 1 pcs
End piece
End piece

ENDPIECE--CORPIP-SST-HP-DN32X200MM

For the gas-tight, radon-proof and watertight sealing of the front ends of a stainless steel heat pump pipe
