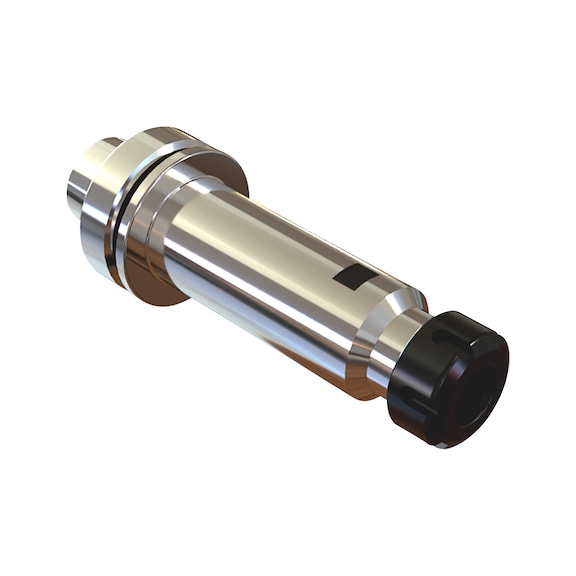

Collet chuck Extra long, HSK-63F, ISO 12164-1, DIN 69893
For detailed information, other images and documents, please select individual articles from the following table.
Collet chuck Extra long, HSK-63F, ISO 12164-1, DIN 69893
For clamping tools with straight shanks in DIN 6499 type A and B collets
Exclusively for trade customers
Register now and access more than 125,000 products
Variants
- Precision-ground functional surfaces.
- Alloyed case-hardening steel, core tensile strength at least 950 N/mm².
- Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm.
- With Balluff chip hole.
Notice
- Without thread for coolant pipe
Application area
- For use on machining centres and CNC machines with tool change system, for drilling, reaming, thread cutting and milling
