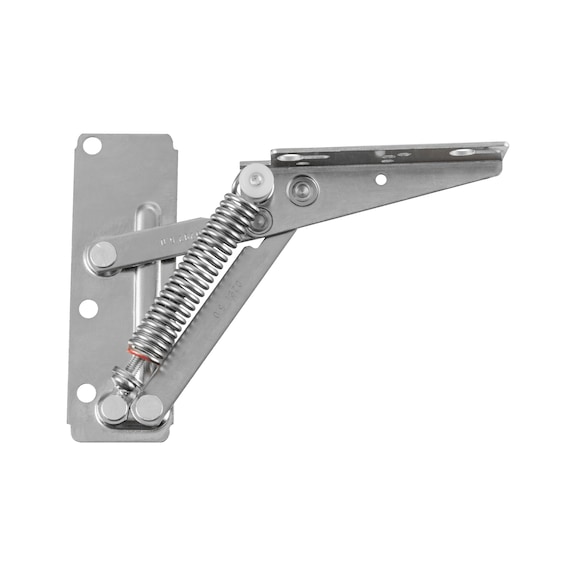

Flap lift fitting HK 80 - 220 N
FLPLFTFITT-HK-80-220N-90GRD
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Upward-opening flap fitting with flexible weight adjustment due to the adjustable spring force. Opening angle of 75° or 90°.
- Neat assembly due to the rows of mounting holes in System 32.
- For wooden fronts or wooden frame fronts.
- Flap dimensions: Height 200 mm to 500 mm, width 300 mm to 1,000 mm.
- Maximum flap weight of 4.6 kg.
Product information
Datasheets(X)
 | |
Min. spring force | 80 N |
Max. spring force | 220 N |
Suitable for max. flap weight incl. handle | 4.6 kg |
Suitable for min./max. cabinet height | 200-500 mm |
Suitable for min./max. cabinet width | 300-1000 mm |

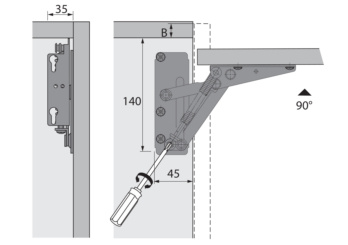

Minimum installation depth | 45 mm |
Opening angle | 90 Degree |
