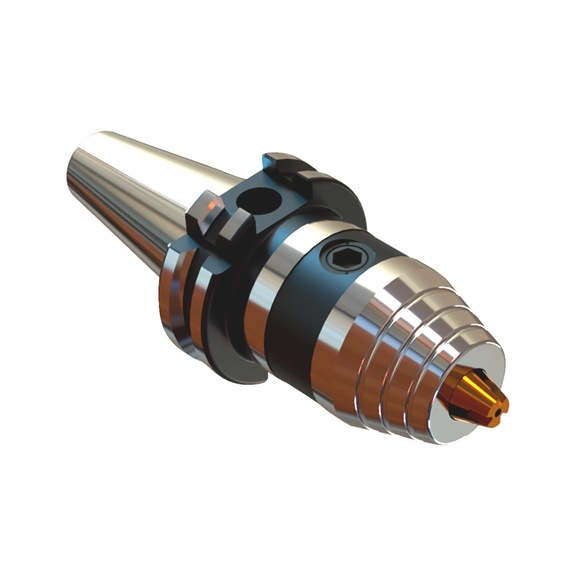

CNC drill chuck SK30, ISO 7388-1, DIN 69871 - DRLCHUK-CNC-SK30-(1-13MM)

CNC drill chuck SK30, ISO 7388-1, DIN 69871

DRLCHUK-CNC-SK30-(1-13MM)

Art.-no. 5338207130

EAN 4068362590887

All versions

Similar products

-,--
price per selected packing unit | Individual prices for customers after login

CNC drill chuck SK30, ISO 7388-1, DIN 69871

Art.-no. 5338207130

-,--
price per selected packing unit

Quantity

PU

x 1 pcs

Show availability in Würth shop

Exclusively for trade customers

Register now and access more than 125,000 products

Locate shop
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Order together in one go - other customers often buy these products together

Please log in for price information.

The products shown are not necessarily compatible. Please always check the articles for the respective application purpose.

For precise clamping of straight tool shanks as well as 3-flat and polygon shanks

Hardened and ground wear parts

Secure clamping of tools at high speeds

For clockwise and anti-clockwise rotation

Surface hardness HRc 58-60

With worm-gear drive for high clamping forces

With Balluff chip hole

Notice

With drive slot

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

|

Application area

For drilling, reaming and countersinking as well as for light milling and finishing

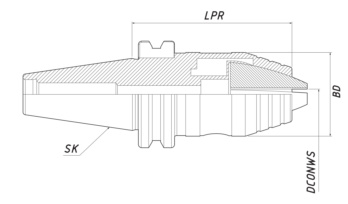

Projecting length (LPR)	111 mm
Outer diameter (BD)	50 mm
Min./max. clamping range (DCONWS)	1-13 mm
Clearance length to collar	92 mm
Max. concentricity	30 µm
Collar diameter	63 mm

Required accessory:

Product

Description

Quantity

PU

Price
/PU

Pull stud SK30

STUD-SK30-B

Art.-no. 5338700040

For tools with ISO 7388-1 tapered shank (formerly DIN 69871)

x 1 pcs

Pull stud SK30

STUD-SK30

Art.-no. 5338700041

For tools with ISO 7388-1 tapered shank (formerly DIN 69871)

x 1 pcs

The packaging unit defines the number of articles in one packaging. In the catalog segment you can choose from different packaging units if a pop-up menu is displayed.

Just leave the field empty if you don't know the packaging unit when directly entering the article number in the shopping basket or when importing with v

The article number is made up of the following: VVVVAAABBB
VVVV = 4 digits for prefix number (please note that the first digit is currently always 0)
AAA = 3 digits for dimension part 1
BBB = 3 digits for dimension part 2

Example article number structures:
Example 1: Screw with dimensions of 4x10 mm:
VVVVAAABBB
00574 10 (2 spaces between the 4 and the 10)

Example 2: Screw with dimensions of 10x20 mm:
VVVVAAABBB
005710 20 (1 space between the 10 and the 20)

Example 3: Flat washer with an internal diameter of 6 mm:
VVVVAAABBB
04076

Price per packaging unit (PU):
The displayed price is always in line with the displayed packaging, if the PU is 250 the price for 250 units, if the PU is 300 the price for 300 units.

Price with price key representation (PSL):
The price always applies to a quantity ruled through the price key:
Price for 1 unit
Price for 100 units
Price for 1000 units

The quantity shows the number of pieces or units of measure contained in the order or delivery for the respective article.

In contrast to sales packaging and secondary packaging, the disposal costs for chemical-technical products are shown separately. The breakdown of the individual costs can be found on the relevant products and also in the shopping cart, as well as in our General Terms and Conditions (GTC).

Additional accessory:

Product

Description

Quantity

PU

Price
/PU

Taper wiper

WPR-SK30

Art.-no. 5338700101

For cleaning the internal taper on machine spindles, sleeves and tool chucks

x 1 pcs

Mounting block

MNTBLOCK-SK30

Art.-no. 5338700201

For simple and secure clamping of tool holders in the collar

x 1 pcs
