WÜRTH Tower Plus
Mobile scaffolding Tower Plus
ROLL-SCFLD-TOWER-PLUS
price per selected packing unit | Individual prices for customers after login
Register now and access more than 125,000 products
- The extendable hooks on the platforms allow easy carrying and mounting of the individual components
- Stable thanks to infinitely variable telescopic boom with screwless quick-release locks

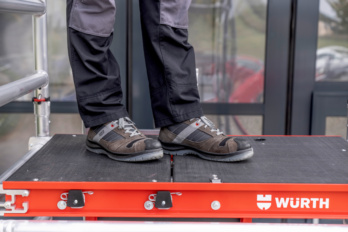

- Lightweight, durable platform covering made of fibre-reinforced plastic with grooved surface
- Easy assembly of aluminium front and longitudinal toe boards, as they are pre-assembled in a folding toe board circle to form one unit
- Robust and stable thanks to welded and pressed joints all around
- Lightweight individual parts
- Tool-free assembly/no loose small parts

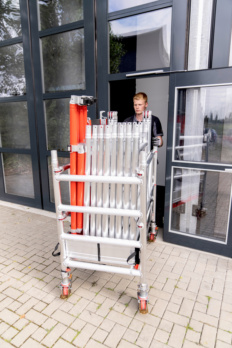

- Space-saving during transport and storage by means of doorway-accessible transport trolley made of scaffold parts
- Height-adjustable castors with locking device
Datasheets(X)
Material | Aluminium |
Material of platform | Aluminium / plastic |
Material of toe board | Aluminium |
Scaffold length | 1.65 m |
Scaffold width | 0.75 m |
Max. scaffold height | 7.2 m |
Platform length | 1.52 m |
Platform width | 0.61 m |
Area of application | Indoors, Outdoors |
Load capacity | 240 kg |
Load class scaffolding | 3 |
Max. number of people | 2 |
Mounting option | 3T |
Max. stand height | 6.2 m |
Max. working height | 8.2 m |
Weight | 160.4 kg |
Transport dimension | 1.65 x 0.75 x 2.10 m |
EN standard | 1004 |
