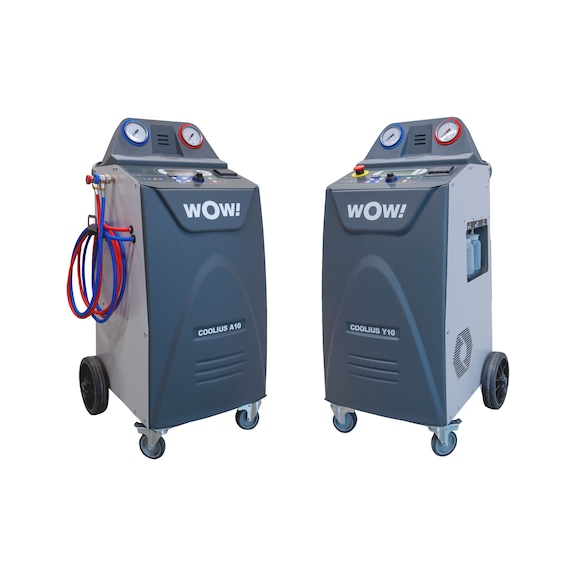

Vehicle air-conditioning service unit COOLIUS® A10 and COOLIUS® Y10 double pack set

Veh. air con. service unit COOLIUS Combi A10-Y10
A/CSERVUNT-VEH-DOUBLEPACK-A10/Y10

Art.-no. W050199000
EAN 4065233045590

-,--
price per selected packing unit
| Individual prices for customers after login

Show availability in Würth trade store
Exclusively for trade customers

Register now and access more than 125,000 products

For vehicles to be fully serviced with R134A or R1234YF refrigerants in the workshop.

COOLIUS® A10 for the refrigerant R134A and COOLIUS® Y10 for the refrigerant R1234YF



Better workshop utilisation and greater flexibility thanks to two devices as opposed to one combination device


  • Possible to carry out two different services simultaneously on different air-conditioning units

  • Avoids unnecessary waiting times for time-consuming evacuation of the inside of the lines between individual services in order to use a different refrigerant.

  • Always ready for use: If one system is unusable, you can carry out further services using the other system.


Easy to use


  • The two air-conditioning service units are light, portable, practical, and require less space than a combination device.

  • Operation is intuitive and identical for both devices


Comply with manufacturer's specifications with two devices


  • Many car manufacturers require the air-conditioning service to be carried out with one device for each refrigerant and not a combination model.

  • The double pack set makes it easier to work in a manufacturer-compliant way.


Long-term use is possible thanks, for example, to the optional WOW! maintenance agreements and the high-quality components of the COOLIUS® devices for long service intervals



COOLIUS® devices are suitable for hybrid and electric vehicles and are resource-conserving thanks to ~100% refrigerant recovery

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Air-conditioning servicing on air-conditioning units in cars, vans, utility vehicles, construction vehicles and agricultural vehicles.

Weight of device

65 kg

Width

1380 mm

Height

1200 mm

Depth

1280 mm

Type of refrigerant

R134a
HFO1234YF

Refrigerant volume

11 kg

Refrigerant filling accuracy

+/- 15 g

Vacuum pump output

100 l/min

Suction capacity

300 g/min

Display

4-line LCD

Max. operating pressure

20 bar

Oil/UV leak detection means, filling accuracy

+/- 2g

Approval

CE

Product weight (per item)

130.400 kg

Vehicle air-conditioning service unit COOLIUS® A10 and COOLIUS® Y10 double pack set including:
1 x
COOLIUS® A10 vehicle air-conditioning service unit

A/C-SERVSTAT-VEH-COOLIUSA10-WOW

Description: Easy-to-use, mobile companion for air-conditioning servicing on R134a units
Quantity: 1 x
1 x
COOLIUS® Y10 vehicle air-conditioning service unit

A/C-SERVSTAT-VEH-COOLIUSY10-SORT

WOW
Description: Fully automatic air conditioning service on R1234yf systems
Quantity: 1 x
The packaging unit defines the number of articles in one packaging. In the catalog segment you can choose from different packaging units if a pop-up menu is displayed.

Just leave the field empty if you don't know the packaging unit when directly entering the article number in the shopping basket or when importing with Easy-/VarioScan. The packaging unit will be determined automatically.
The article number is made up of the following: VVVVAAABBB
VVVV = 4 digits for prefix number (please note that the first digit is currently always 0)
AAA = 3 digits for dimension part 1
BBB = 3 digits for dimension part 2

Example article number structures:
Example 1: Screw with dimensions of 4x10 mm:
VVVVAAABBB
00574 10 (2 spaces between the 4 and the 10)

Example 2: Screw with dimensions of 10x20 mm:
VVVVAAABBB
005710 20 (1 space between the 10 and the 20)

Example 3: Flat washer with an internal diameter of 6 mm:
VVVVAAABBB
04076
Price per packaging unit (PU):
The displayed price is always in line with the displayed packaging, if the PU is 250 the price for 250 units, if the PU is 300 the price for 300 units.

Price with price key representation (PSL):
The price always applies to a quantity ruled through the price key:
Price for 1 unit
Price for 100 units
Price for 1000 units
The quantity shows the number of pieces or units of measure contained in the order or delivery for the respective article.
In contrast to sales packaging and secondary packaging, the disposal costs for chemical-technical products are shown separately. The breakdown of the individual costs can be found on the relevant products and also in the shopping cart, as well as in our General Terms and Conditions (GTC).
Required accessory:

Product
Description
Quantity
PU
Price
/PU
Removal adapter set R134a For 12 kg R134a reusable refrigerant bottles

ADAPTSET-(F.REUSABLE-12KG)-R134A-3PCS

COOLIUS
x 1 pcs
Removal adapter set R1234YF For 5.6 kg R1234yf reusable refrigerant bottles

ADAPTSET-F.A/C-R1234YF-2PCS

x 1 pcs
Air-conditioning refrigerant R1234yf

REFRIG-R1234YF-REFILL-5KG

Accessories for maintaining, servicing and retrofitting R1234yf vehicle air-conditioning systems.
x 1 pcs
Air-conditioning refrigerant R134 a

REFRIG-R134A-MULTIPURPOSE-12KG

Accessories for maintaining, servicing and retrofitting R134a vehicle air-conditioning systems
x 1 pcs
POE oil POE 100

OIL-POE-100-(EL-COMPRESSOR)-210ML

Special POE (polyester) air-conditioning compressor oil for vehicle air-conditioning systems using R134a/R1234yf refrigerants and electric air-conditioning compressors (hybrid, start/stop, electric)
Multigrade compressor oil Pro

COMPROIL-MULTIGRADE-PRO-1000ML

High-value synthetic oil with additive specifically tailored for use in air-conditioning compressor technology
