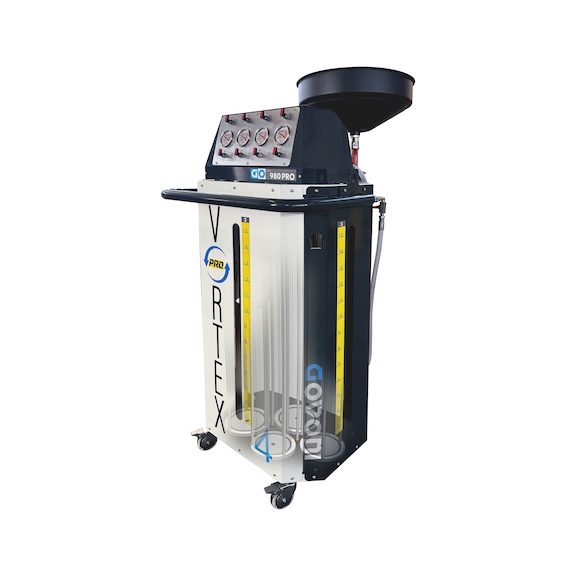

VORTEX fluid transfer device for cooling system/battery
Coolant servicing device
FILSYS-CL-VORTEX
Art.-no. 9501022080
EAN 4068362108747
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Enables efficient transfer of coolants
- Servicing device for replacement of coolant at regular intervals and repair work
- Allows servicing, assessment, cleaning and filling according to manufacturer's specifications
- No mixing of the fluid due to the design features of the device
- Can be emptied by vacuum or gravity/funnel
- Can be filled by vacuum and/or pressure (approx. 0.5 bar)
- The tanks can be divided as follows, for example: 1 distilled water/2 coolant 1/3 coolant 2/4 used fluid
- 2 wheels with rotation and roll stop allow the device to be moved easily
- Draining, cleaning of the cooling system as well as leak testing and refilling are bubble-free
- Air inlet pressure can be adjusted on the device
- 6.3 bar of workshop air is sufficient for operation
- The scope of delivery includes 4 transparent, illuminated 20-litre liquid tanks, which are ideally suited for assessing the degree of contamination, quantity and specification (colour)
- Scope of delivery: 2 x rubber cone for expansion tank, 2 x compressed air coupling 0 in and 90 in, 1 x pressure gauge for leak testing
Notice
- The collection funnel is not included in the scope of delivery and can be ordered separately: Art. 9501022088
Product information
Datasheets(X)
Application area
- Ideal for the efficient transfer of coolant in cooling systems and batteries in cars to vans with internal combustion engines as well as hybrid and electric vehicles
- Ideal for complex cooling systems with relatively long lines, relatively large quantities of coolant sometimes up to 20 litres, height differences and twists in the system, cleaning before refilling and filling without bubbles
Min. operating pressure | 0.8 bar |
Max. air pressure | 8 bar |
Connection thread | 1/4 inch |
Max. operating pressure | 1 bar |
Min./max. operating pressure | 0.8-1 bar |
