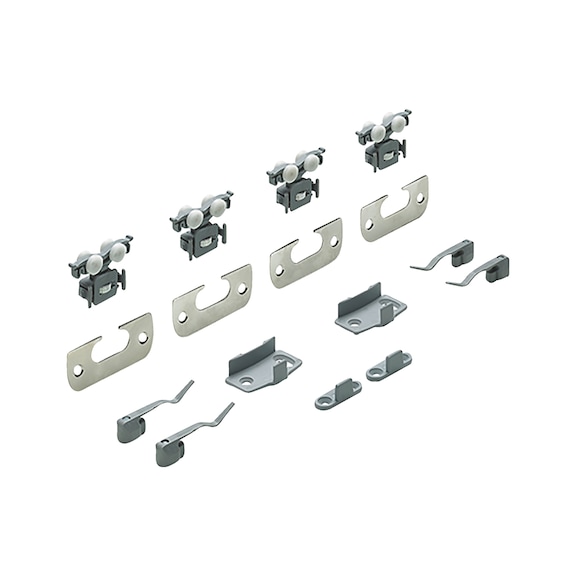

TopLine 110 sliding door fitting

Name: TopLine 110 sliding door fitting
Brand: Würth
SKU: 0684706070

Sliding door fitting TopLine 110
SLIDDRFITT-TOPLINE-110-2T

Art.-no. 0684706070

EAN 4062856709335

All versions

Similar products

-,--
price per selected packing unit | Individual prices for customers after login

TopLine 110 sliding door fitting

Art.-no. 0684706070

-,--
price per selected packing unit

Quantity

PU

x 1 pcs

Show availability in Würth trade store

Exclusively for trade customers

Register now and access more than 125,000 products

Locate trade store
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Order together in one go - other customers often buy these products together

Please log in for price information.

The products shown are not necessarily compatible. Please always check the articles for the respective application purpose.

With optional soft-close system for even greater comfort

Sliding furniture door fitting positioned at the top of the cabinet for inset doors

Due to the recessed rails and recessed fittings, the fitting is almost invisible

Greater calm in the room: Optional closing damping, which can also be fitted at any time

Strong design and comfortable: No profiles getting in the way on the bottom panel

Nearly invisible: Running profiles are recessed in the upper panel

Save time: Quick mounting and alignment thanks to tool-free clip assembly. In addition, the cut-out in the runner allows running parts to be inserted quickly and easily, even after the runner has already been glued in

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

|

Instructions

For sliding door cabinets with inset doors


Material of door	Wood
Installation option	Inset
Suitable for max. door weight	20 kg
Suitable for number of doors	2
Suitable for min. door thickness	16 mm
Suitable for max. door thickness	19 mm
Suitable for min./max. door thickness	16-19 mm
Suitable for min. door width	500 mm
Suitable for max. door width	1500 mm
Suitable for min./max. door width	500-1500 mm
Suitable for max. door height	2000 mm
Height adjustment	+/- 2 mm

Required accessory:

Product

Description

Quantity

PU

Price
/PU

TopLine 110 one-way runner for gluing

AY-S-RUNR-SLIDDRFITT--TOPLINE-110-3000MM

Art.-no. 0684706072

For recessed installation and gluing into the top panel

x 1 pcs

Packaging unit

The packaging unit defines the number of articles in one packaging. In the catalog segment you can choose from different packaging units if a pop-up menu is displayed.

Just leave the field empty if you don't know the packaging unit when directly entering the article number in the shopping basket or when importing with Easy-/VarioScan. The packaging unit will be determined automatically.

Structure of our article number

The article number is made up of the following: VVVVAAABBB
VVVV = 4 digits for prefix number (please note that the first digit is currently always 0)
AAA = 3 digits for dimension part 1
BBB = 3 digits for dimension part 2

Example article number structures:
Example 1: Screw with dimensions of 4x10 mm:
VVVVAAABBB
00574 10 (2 spaces between the 4 and the 10)

Example 2: Screw with dimensions of 10x20 mm:
VVVVAAABBB
005710 20 (1 space between the 10 and the 20)

Example 3: Flat washer with an internal diameter of 6 mm:
VVVVAAABBB
04076

Information on price display

Price per packaging unit (PU):
The displayed price is always in line with the displayed packaging, if the PU is 250 the price for 250 units, if the PU is 300 the price for 300 units.

Price with price key representation (PSL):
The price always applies to a quantity ruled through the price key:
Price for 1 unit
Price for 100 units
Price for 1000 units

Quantity

The quantity shows the number of pieces or units of measure contained in the order or delivery for the respective article.

In contrast to sales packaging and secondary packaging, the disposal costs for chemical-technical products are shown separately. The breakdown of the individual costs can be found on the relevant products and also in the shopping cart, as well as in our General Terms and Conditions (GTC).

Additional accessory:

Product

Description

Quantity

PU

Price
/PU

TopLine 110 + SlideLine 56 damping set

AY-SOFTCL-SLIDDRFITT-TL-110-SL56-2T

Art.-no. 0684706071

Optional for screwing below the top panel, which can also be done at any time

x 1 pcs
