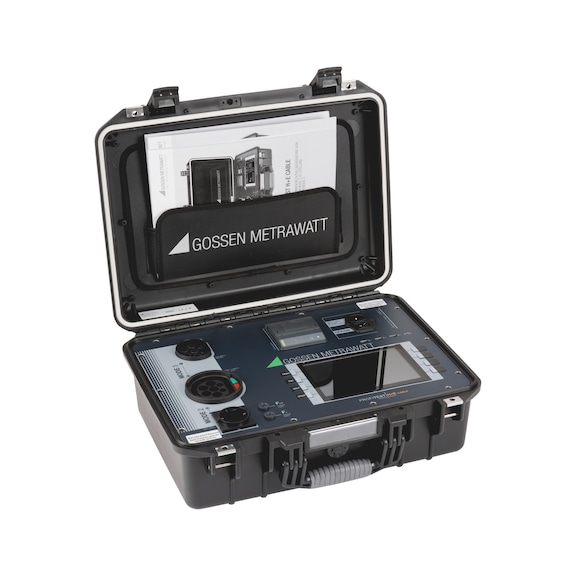

Tester for PROFITEST H+E CABLE e-charging cables
Tester for charging cables PROFITEST H+E CABLE
TEST-CHRGCBL-(PROFITEST H+E CABLE)
Art.-no. 5634007201
EAN 4068362083938
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
For standard-compliant testing of Mode 2 IC-CPD and Mode 3 e-charging cables
Product highlights
- Automatic test procedure according to manufacturer's specifications
- Manufacturer database
- Individual tests by electricians, password protected
- Connect a keyboard (included in scope of delivery) or barcode/QR code reader (optionally available) for easy data entry
- Direct connection of Mode 2/3 charging cables
- Testing of 1- and 3-phase charging cables
- Various adapters for connecting charging cables
Benefits
- Mobile use - the test can be performed at any location
- Intuitive operating concept
- More efficiency due to test procedures according to the manufacturer's specifications
- Print the test report on site with the integrated printer
Special application functions
- Interview mode for visual inspection
- Intuitive user guidance
- Pass-fail indicator
- Report printout via USB thermal printer
- Input of info text (e.g. chassis number, licence plate or inventory number) with USB keyboard
- Rugged, shockproof case, IP67 rated (closed)
- Built-in data memory for 1,000 measurements
Tests
- RLO low-ohmic continuity of the protective conductor
- RISO insulation resistance
- RCD AC trip current and time
- Test of DC sensors 6 mA trip time/current
- Simulation L/N/PE
- Function check status B, C, E
- Editable limit values in single test
Electrical tests
- Low-ohmic continuity of the conductors
- Insulation measurement
- RCD test AC (trip time and current)
- Check of 6 mA sensors (RDC-DD, RCMB, CCID etc.)
- Differential current measurement
- Voltage measurement
- Resistance measurement PP (current rating in accordance with IEC/EN/VDE)
- Visual inspection preselected - functional test: CP states (A, B, C, E)
- Universal mains voltage input (110-240 V, 40-65 Hz)
Scope of delivery
- 1x PROFITEST H+E CABLE incl. mains connection cable
- 1x USB keyboard
- 1x CEE 32 A safety CEE socket red
- 1x CEE 16 A safety CEE socket red
- 1x CEE 16 A safety camping CEE socket blue
- 1x roll of thermal paper for printer
- 1x factory calibration certificate
- 1x operating instructions DE, EN
Product information
Datasheets(X)
Application area
- For standard-compliant testing of charging cables for electric vehicles
- For mobile testing of Mode 2 (IC-CPD) charging cables and Mode 3 charging cables
Instructions
- The test procedure is carried out automatically or through individual tests by a qualified electrician
- The test result is displayed as a pass-fail indicator
- The test report can be printed and/or saved with the integrated thermal printer
- For visual inspection, questions are specified for the relevant inspection criteria, which must be confirmed with "Yes" or "No"
- Evaluation is automatic
- The device is operated using the function keys on the left and right of the display
- Settings and values are shown on the display
- Input is done via the connected USB keyboard (included in scope of delivery)
- The test procedure comprises visual inspection, functional testing, electrical testing and reporting and is carried out automatically or by means of individual tests by a qualified electrician
Display | 7 inch TFT LCD |
Overvoltage protection category | CAT II/300 V |
IP protection class | IP 40 |
Protection class | Protection class II/protective insulation |
Min./max. operating temperature | 0 to 40 °C |
Length x width x height | 469 x 372 x 177 mm |
