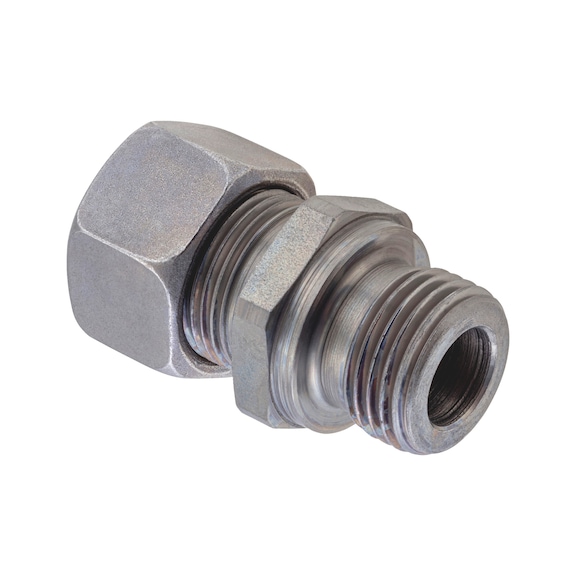

Straight male fitting ISO 8434-1, zinc-nickel-plated steel, BSPP male thread with metallic sealing edge, shape B
Straight screw-in fitting steel BSPP male
TUBFITT-ISO8434-L-SDSC-B-ST-D8-G1/4
Art.-no. 4980021072
EAN 4069215129476
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Lightweight series with 24 degree cone, includes cutting ring and union nut
Product information
Datasheets(X)
 | |
Thread type x nominal diameter x pitch (T1) | M14 x 1.5 |
Thread type 3 x nominal diameter 3 (T2) | G1/4 |
ISO | 8434 |
Nominal pressure PN | 315 |
Pipe diameter (D1) | 8 mm |
Diameter 2 (D2) | 6 mm |
Width across flats (S1) | 19 mm |
Width across flats 2 (S2) | 17 mm |
Material | Steel |
Surface | Zinc nickel |
Length (L1) | 37 mm |
Length 2 (L2) | 29 mm |
Length 3 (L3) | 10 mm |
Length 8 (i1) | 12 mm |
