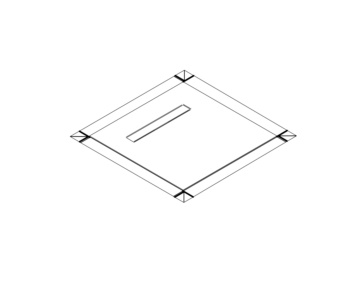

Solid-material, line-drainage shower board

Shower board solid surface line drainage
SHWRBRD-LINE-MINERAL-900X1000X47

Art.-no. 5273800910
EAN 4065746411639
All versions
-,--
price per selected packing unit | Individual prices for customers after login

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

Floor-level shower unit with high-quality solid surface and integrated slope. With horizontal drain (vertical drain optional). Installation height from 132 mm (45 mm)
  • Solid surface made of solid white material

  • R9 anti-slip surface in accordance with EN 51130

  • Factory-integrated, circumferential sealing collar (Cerafix 305 material) with pre-embossed corners for easy and secure connection to the second sealing level

  • Processes according to standard EN 274 with connection DN 50
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Material

EPS - Expanded polystyrene

Volumetric weight

80 kg/m³

Surface

Solid surface

Width x depth x height (A x B)

900 x 1000 x 47 mm

Gutter length (E)

560 mm

Gutter width

82 mm

Installation height (without bonding) with outlet horizontal

132 mm

Installation height (without bonding) with outlet vertical

47 mm

Gradient min./max.

1.5-2.5 %

Crosswise distance from centre of outlet to edge

211 mm

Longitudinal distance from centre of outlet to edge

450 mm

Drain rate

30 l/min

Water-trap height

50 mm

DN tube connection

DN.. 50..

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Sound insulation mat
Sound insulation mat

SOUINSUMAT-1200X1200X8

For isolating shower pans/shower channels
x 1 pcs
Flex fast-setting adhesive For installing shower boards and base elements
Flex fast-setting adhesive For installing shower boards and base elements

QCKADH-10KG-BUCKET-F.SHWRBRD/SUBSTRELMNT

x 1 pcs
Subassembly element set For height compensation when installing shower boards
Subassembly element set For height compensation when installing shower boards

SUBSTRELMNT-SET-900X900X20/30/40

x 1 pcs
Subassembly element set For height compensation when installing shower boards
Subassembly element set For height compensation when installing shower boards

SUBSTRELMNT-SET-1200X1200X20/30/40

x 1 pcs
Subassembly element set For height compensation when installing shower boards
Subassembly element set For height compensation when installing shower boards

SUBSTRELMNT-SET-1500X1500X20/30/40

x 1 pcs
1C slurry-type seal coating CERAfix <SUP>®</SUP> 300
1C slurry-type seal coating CERAfix ® 300

SEALCOAT-1C-(CERAFIX300)-15KG-GREY

CERAFIX
Flexible crack-bridging, mineral one-component sealing slurry for indoor and outdoor use
Inner corner CERAfix<SUP>®</SUP> 306
Inner corner CERAfix® 306

INCRN-(CERAFIX-306)-120MM

CERAFIX
Inner corner for quick and secure sealing of corner formations in walls and floors
x 25 pcs
Outer corner CERAfix<SUP>®</SUP> 307
Outer corner CERAfix® 307

OUTCRN-(CERAFIX-307)-120MM

CERAFIX
Outer corners for quick and secure sealing of corner formations in walls and floors
x 25 pcs
CERAfix<SUP>®</SUP> 316 sealing tape
CERAfix® 316 sealing tape

WTRPROFTPE-(CERAFIX-316)-50MX12CM-RED

CERAFIX
Sealing tape for watertight sealing of connection and moving joints.
x 1 pcs
Vertical solid-material line drainage For solid-material line-drainage shower board
Vertical solid-material line drainage For solid-material line-drainage shower board

DRN-SHWRBRD-MINERAL-LINE-VERTL-DN50

x 1 pcs
