Sling swivel with joint
Sling swivel, high-strength, steel, GK10, w. joint
SLNGSWIV-360-(12,5T)-M42X63MM
Art.-no. 516214442
EAN 4061975330925
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Attachment point for lifting loads
- Safety factor 4 in all load directions, 180°
- Can be rotated 180°
- Can be screwed in using an offset screwdriver
- Crack tested to 100%
- Quality class 10
- Painted in RAL 3022
Proof of Performance
- Suitable for secure raising of loads according to Machinery Directive 2006/42/EC
- Constructed, tested and certified according to GS-OA 15-04 – EN 1677
- Designed for a load of 20,000 load changes
Notice
The sling swivel must always be fully screwed into the component. With axial tension, a deviation of +/-5° with a reduction in load-bearing capacity by 10% is permitted.
| Art. no. | Max. load-bearing capacity |  |  |  |  |  |  |  |  |  |  |
| W.L.L. | 1 chain | 2 chains | 1 chain | 2 chains | 2 chains | 3/4 chains | |||||
| 5162 144 33 | 8 t | 8 t | 16 t | 8 t | 16 t | 11.2 t | 8 t | 8 t | 16.8 t | 12 t | 8 t |
| 5162 144 36 | 10 t | 10 t | 20 t | 10 t | 20 t | 14 t | 10 t | 10 t | 21 t | 15 t | 10 t |
| 5162 144 39 | 10 t | 10 t | 20 t | 10 t | 20 t | 14 t | 10 t | 10 t | 21 t | 15 t | 10 t |
| 5162 144 42 | 12 t | 12.5 t | 25 t | 12.5 t | 25 t | 17.5 t | 12.5 t | 12.5 t | 26.3 t | 18.8 t | 12.5 t |
| 5162 144 45 | 15 t | 15 t | 30 t | 15 t | 30 t | 21 t | 15 t | 15 t | 32 t | 22.5 t | 15 t |
- Suitable for secure raising of loads according to Machinery Directive 2006/42/EC
- Constructed, tested and certified according to GS-OA 15-04 – EN 1677
- Designed for a load of 20,000 load changes
Product information
Datasheets(X)
 | |

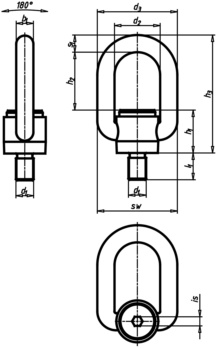

Load-carrying capacity | 12 t |
Thread type x nominal diameter (d1) | M42 |
Thread length (l1) | 63 mm |
Material | Steel |
Surface | Plain |
Internal diameter (d2) | 85 mm |
Bracket width (d3) | 150 mm |
Body height (h3) | 80 mm |
Interior height (h2) | 108 mm |
Height (h1) | 220 mm |
Bracket diameter (s1) | 32 mm |
Thickness (b1) | 32 mm |
Diameter of contact surface (d4) | 76.5 mm |
Internal drive (is) | HS17 |
Max. torque | 1304 Nm |
Product weight (per item) | 6000.000 g |
