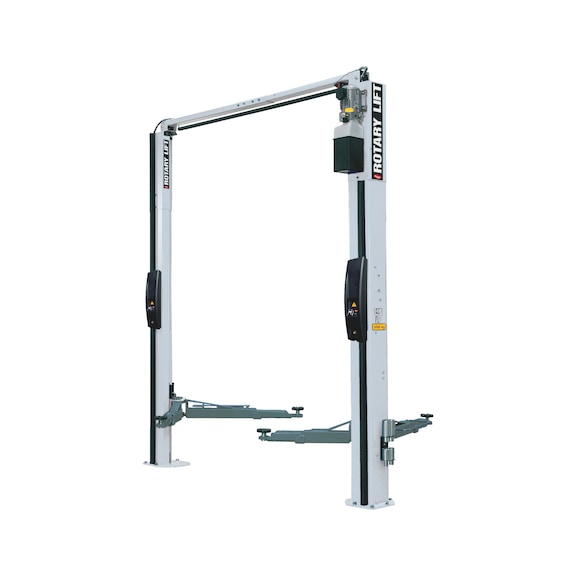

SPOA3TS-5-EH1 lift - LFT-2POST-3,5T-SPOA3TS-5-EH1

SPOA3TS-5-EH1 lift

Two-post lifting platform 3.5 t SPOA3TS-5-EH1
LFT-2POST-3,5T-SPOA3TS-5-EH1

Art.-no. 9501011020

EAN 4065746551021

All versions
-,--
price per selected packing unit | Individual prices for customers after login
SPOA3TS-5-EH1 lift

Art.-no. 9501011020

-,--
price per selected packing unit
Quantity
PU
x 1 pcs

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

3.5 t electro-hydraulic two-post lift
  • Electro-hydraulic drive

  • Two-post lift without base frame

  • Driven by a powerful hydraulic unit

  • Rigid connection over the lift

  • 2x maintenance-free hydraulic cylinders

  • Automatic synchronisation control via wire rope

  • Automatic support arm lock with additional manual release mechanism

  • Push-fit rotating plate with telescopic spindle

  • Lifting and lowering via push buttons

  • Set-down mechanism with automatic release

  • Mechanical safety latches on both sides with automatic actuation


Scope of delivery


  • 2x pre-assembled posts

  • Hydraulic unit (not including anchors or oil)

  • 4x support arms
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Load capacity

3500 kg

Construction height

3865 cm

Lift height

1957 cm

Passing width

2336 cm

Drive for lifting platform

Electro-hydraulic

Over-ground

Yes

Service components
Category Services Art. no.
Service Forklift delivery of column lift 5996 001 235
Service Installation/instruction incl. material and 3.5 t lifting device 5996 001 236
Service Column lift disassembly 5996 001 237
