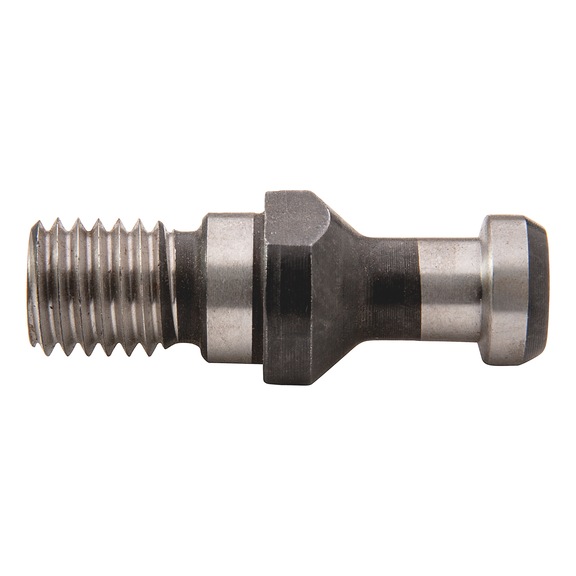

Pull stud SK30
STUD-SK30
Art.-no. 5338700041
EAN 4068362604393
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
For tools with ISO 7388-1 tapered shank (formerly DIN 69871)
- All pull studs made of 16MnCr5 material
- Case-hardened HRC58 +/- 2
- Thread and holes ground with soft, black-oxide finish
Product information
Datasheets(X)
Application area
- Suitable for all tool holders with ISO 7388-1 tapered shank (formerly DIN 69871)
 | |

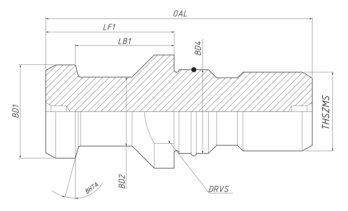

Width across flats (DRVS) | 14 mm |
Length (OAL) | 44 mm |
Thread type x nominal diameter x pitch (THSZMS) | M12 x 1.5 |
Male thread (CRKS) | 12 mm |
Diameter (BD2) | 9 mm |
Diameter 2 (BD4) | 13 mm |
Diameter 3 (BD1) | 13 mm |
Length 2 (LF1) | 24 mm |
Length 3 (LB1) | 19 mm |
Angle (BHTA) | 15 Degree |
