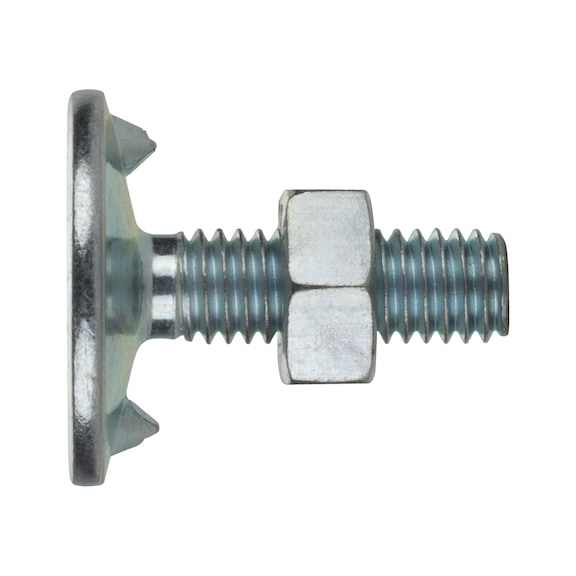

Plate screw DIN 15237, steel 4.6, zinc-plated, blue passivated (A2K)

For detailed information, other images and documents, please select individual articles from the following table.

Plate screw DIN 15237, steel 4.6, zinc-plated, blue passivated (A2K)

Standards: DIN 15237
Material: Steel
Property class: 4.6
Surface: Zinc plated
RoHS-compliant: Yes
Head type: Disc head
Thread type: Metric thread
Thread form: Standard metric thread

Thread design: Partial thread

Area of application: For continuous conveyor

show more ... show less ...

Available in 5 versions

Exclusively for trade customers

Register now and access more than 125,000 products

Locate shop
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Variants

You can refine your search by selecting different attributes

Art.-no.

1

You can refine your search by selecting different attributes

Art.-no.	Thread type x nominal diameter	Length	Head diameter	Pitch	Quantity	Attributes	PU	Price/PU *
510300620	M6	20 mm	20 mm	1 mm		Thread type x nominal diameter M6 Length 20 mm Head diameter 20 mm Pitch 1 mm	100 pcs
510300825	M8	25 mm	28 mm	1.25 mm		Thread type x nominal diameter M8 Length 25 mm Head diameter 28 mm Pitch 1.25 mm	100 pcs
510300830	M8	30 mm	28 mm	1.25 mm		Thread type x nominal diameter M8 Length 30 mm Head diameter 28 mm Pitch 1.25 mm	100 pcs
5103001040	M10	40 mm	35 mm	1.5 mm		Thread type x nominal diameter M10 Length 40 mm Head diameter 35 mm Pitch 1.5 mm	100 pcs
5103001050	M10	50 mm	35 mm	1.5 mm		Thread type x nominal diameter M10 Length 50 mm Head diameter 35 mm Pitch 1.5 mm	100 pcs

* Individual prices for customers after login
