Printer nozzle DIANOZ for V6
Printer nozzle DIANOZ Gühring for V6
DIANOZ M6X7,5 F1,75 D1,0
Art.-no. 4954630314
EAN 4099618438028
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
The DIANOZ 3D printer nozzle ensures uniform material extrusion, smooths the component surface during printing and offers maximum wear protection even with highly abrasive materials.
This is due to the sophisticated geometry in combination with the unique tip made of synthetically manufactured diamonds. This polycrystalline diamond (PCD) is in no way inferior to the natural gemstone and makes DIANOZ a game changer for FDM, FFF and FGF technology.
Product information
Datasheets(X)
 | |

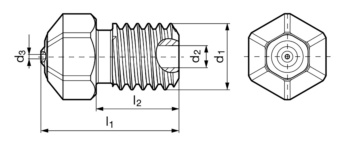

Thread type x nominal diameter x pitch (d1) | M6 x 1 |
Length (l1) | 12.5 mm |
Length 2 (l2) | 7.5 mm |
Nominal diameter (dN) | 6 mm |
Diameter 2 (d2) | 2 mm |
Diameter nozzle (d3) | 1 mm |
Filament diameter (dF) | 1.75 mm |
Thread length | 7.5 mm |
Material | Polycrystalline diamond |
Manufacturers | Gühring |
Colour | Gold |
