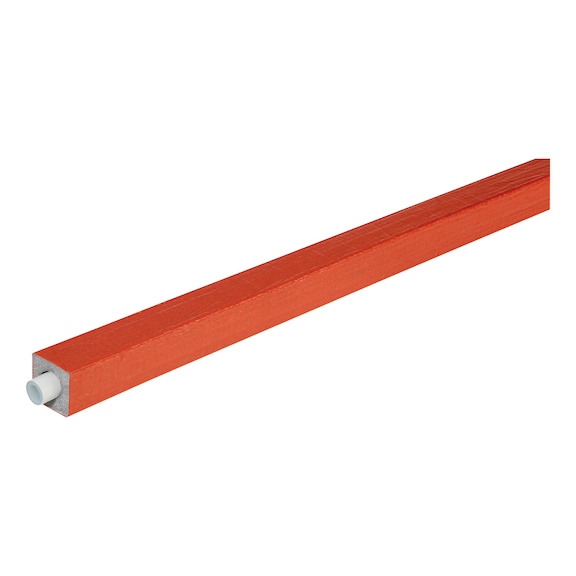

PRINETO rectangular pre-insulated HD pipe
PRINETO HD pipe rectangular pre-insulated
PRINETO STABIL-ROHR 16, QUADRATISCH VORG
Art.-no. 0878528151
EAN 4044448022091
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Multi-layer composite pipe, suitable for heating and drinking water applications
- Rectangularly pre-insulated in accordance with German Building Energy Act (GEG) annex 8
- Drawn in closed-cell polyethylene (WLG 040) with robust PE outer skin
- Laser butt-welded with aluminium layer and PE top layer
- Oxygen-tight in accordance with DIN 4726
- Application classes 4 and 5 in accordance with EN ISO 21003-1
- Connection with silver-coloured sliding sleeve
Notice
- Rectangular extruded closed-cell polyethylene soft foam with robust and tear-resistant PE outer skin, completely free of HCFCs and HFCs in accordance with the climate alliance, halogen-free.
- 0878318443 Connection with brass sliding sleeve
Product information
Datasheets(X)
Length of roll | 50 m |
Diameter | 16 mm |
Length | 50 m |
Wall thickness (s) | 2.8 mm |
Insulating-material thickness | 7 mm |
Internal diameter | 11.4 mm |
Outer diameter (d) | 17 mm |
Material | Polymerised polyethylene |
Heat conductance λ | 0.35 W/(m*K) |
Tensile strength | 23 N/mm² |
Colour | White, Red |
Breaking elongation | 400 % |
Impact strength at -20°C | No breakage |
E module | 600 N/mm² |
Operating pressure | 10 bar |
Density | 0.94 g/cm³ |
Content per rm | 0.11 l |
Building material class | B2 - Normally inflammable |
Roughness inner pipe | 0.007 mm |
