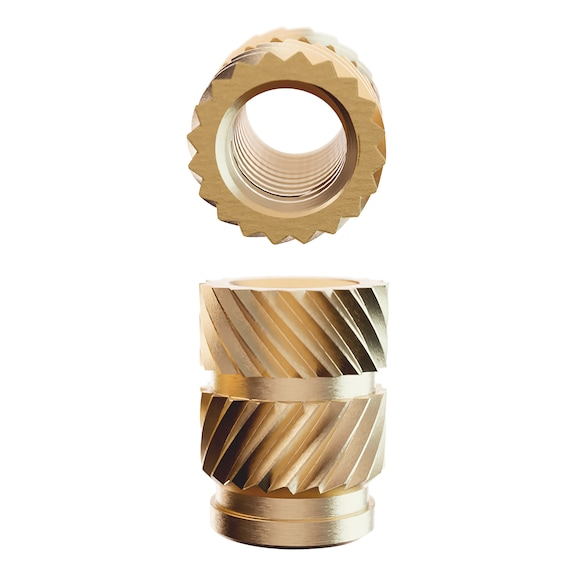

Original CNC Kitchen thread insert
Thread insert
THRINRT-STANDARD-M5X9.5MM (50 PCS)
Art.-no. 4954617309
EAN 4270002316447
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Brass (lead- and cadmium-free), double knurled for secure seating, can be melted into thermoplastics
- For inserting into 3D-printed plastic components made from materials such as PLA, PETG, ABS etc.
- Environmentally friendly - made from precision-processed, lead- and cadmium-free brass
- Outstanding quality - turn your 3D-printed parts into professional functional components
- Easy to install with the soldering iron
- All products have been tested
- Fully REACH and RoHS compliant
- Pilot end for easy installation
- Can also be inserted into various resin prints
- The melting temperature should ideally be approx. 10 °C higher than the printing temperature
Scope of delivery
- M2-M3: 100 pieces
- M4-M5: 50 pieces
- M6-M10, 1/4 inch, 3/8 inch and G1/8 inch: 20 pieces
Product information
Datasheets(X)
Instructions
More details about installation, strength and additional information can be found on the CNC Kitchen YouTube channel and on the website.
 | |
Thread type x nominal diameter x pitch (d1) | M5 x 0.8 |
Length (l1) | 9.5 mm |
Diameter (dA) | 7.1 mm |
Nominal diameter (dN) | 5 mm |
Diameter 2 (d2) | 6.5 nm |
Min. wall thickness (Wmin) | 2.6 mm |
Material | Brass |
Manufacturers | TwoChefs |
