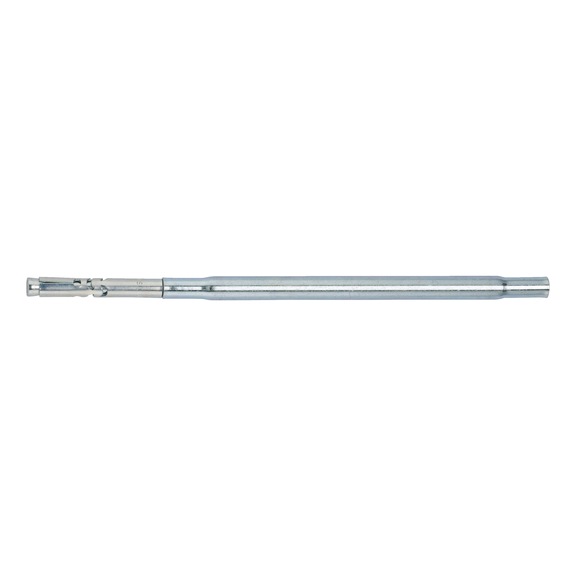

Mounting system for lift and slide doors
Mounting screw for lift and slide systems
SCR-SET-CONCRETE-10X200MM
Art.-no. 0479010200
EAN 4099618959615
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
The mounting kit for lift and slide doors ensures safe, precise installation and ensures long-term, reliable functioning of the door systems
- Long-term, reliable functioning of lift and slide elements
- Quick and safe installation
- Readjustment can be carried out at any time
- Intelligent and reliable mounting system
- Increased safety and satisfied customers
Scope of delivery
- 3x mounting screws
- 3x washers
- 3x trim caps (white)
Notice
To ensure secure anchoring of lift and slide doors, a sufficient amount of window installation brackets must be used.
Impact tool not included in scope of delivery.
Product information
Datasheets(X)
Application area
- For compensating sunken concrete, steel and wooden ceiling constructions
- For correcting deformations of large lift and slide door elements
- To prevent difficult operation of the movable door leaf, to prevent the door from jamming or dragging on the floor and from complete inoperability - and for subsequent adjustment
- For ensuring long-term functionality and ease of operation, and for quick and simple readjustment
Underground | Concrete |
Drill hole diameter | 8 mm |
Drill-hole diameter in window frame (dWin) | 12 mm |
Length | 200 mm |
Drill hole depth | 60 mm |
