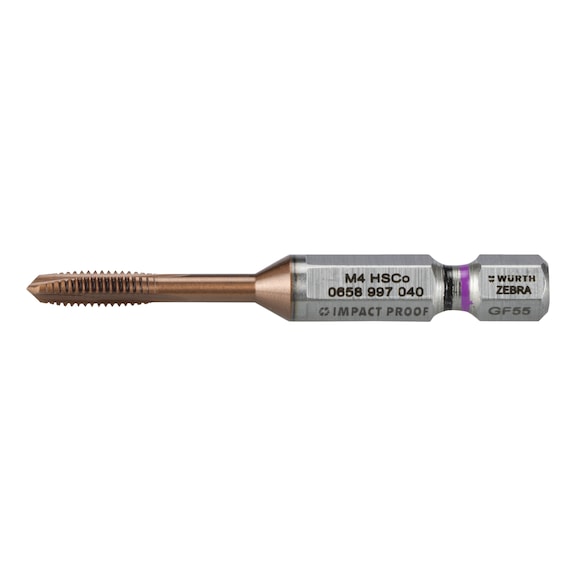

Machine tap HSCo NANOPROTECT hex

MATAP-THRGHO-HSCO-NANOPROTECT-HEX-M4

Art.-no. 0658997040

EAN 4068362383212

All versions

Similar products

-,--
price per selected packing unit | Individual prices for customers after login

Machine tap HSCo NANOPROTECT hex

Art.-no. 0658997040

-,--
price per selected packing unit

Quantity

x 1 pcs

Show availability in Würth shop

Exclusively for trade customers

Locate shop
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Thread type	Metric thread
Material to be processed	Steel, Stainless steel, Cast iron, Titanium, Special alloy, Aluminium, Non-ferrous metal
Hole type	Clearance hole ≤ 2xD
Suitable for machine type	Cordless screwdrivers, Drill, Pedestal drilling machine, Impact wrenches
Quality	ZEBRA-Premium
Thread type x nominal diameter	M4
Pitch	0.7 mm
Length	54.5 mm
Shank diameter	1/4 in
Cutting material	HSCo
Surface	nanoProtect
Form	B
Core hole diameter	3.3 mm
Shank style	Hexagon bit holder, shape E, DIN3126
Tolerance of screw taps	ISO 2X (6HX)
Suitable for tensile strength up to	1400 N/mm²
Service life (points system)	4 of 4 points
Trueness to gauge (points system)	4 of 4 points
Versatility (points system)	4 of 4 points
Cutting behaviour (points system)	4 of 4 points
Chip formation (points system)	4 of 4 points
Material of sub-group	General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels, sulphurated, Stainless steels, austenitic, Stainless steels, martensitic, Titanium, Titanium alloys, Aluminium, Aluminium casting alloys (<10% silicon), Aluminium wrought alloys, Copper, Brass, long-chipping, Bronze, long-chipping, Plastics, thermoset, Plastics, thermoplastic
