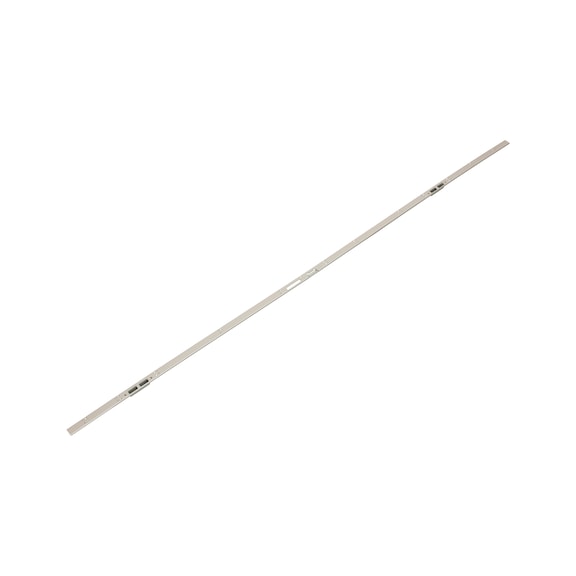

Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV
Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV - 1
Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV - 2
Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts - STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV - 3

Locking strip for multiple locks with 2 bolts/2 power wedges or 2 bolts

Striker strip for multiple locks
STRKSTR-(F.MULTILOK-KOMBI)-PS-SILV

Art.-no. 0688515891
EAN 4065746471848
All versions

-,--
price per selected packing unit | Individual prices for customers after login

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

Easy installation thanks to less time spent on milling
  • Optimum fastening

  • Easy conversion for use with an electric strike

  • Length can be shortened

  • Can be connected to an alarm system in conjunction with bar switching contacts
Notice

Electric opener, universal magnet or bar switching contacts must be ordered separately.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for

Wooden house doors

Type of assembly

Screw-on

Compatible with

Multiple lock with two bolts, Multiple lock with two bolts and two power wedges, Multiple lock Eneo CC

Suitable for rebate clearance

12 mm (Euro rebate)

Dimension between axes

13 mm

Contact pressure adjustment

+/- 1,5 mm

DIN direction

DIN L

Material

Steel / Die-cast zinc

Surface

Zinc plated

Colour

Silver

Gloss level

Matt

Door position of active leaf

Left

Face plate width

29 mm

Can be shortened by

300 mm

Width (B)

29 mm

Length x width x height

2230 x 29 x 7 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Multiple lock with 2 bolts
Multiple lock with 2 bolts

MULTILOK-2BLT-SILVER-65-92-10-20

Two deeply penetrating bolts make it difficult to pry out the door
x 1 pcs
Multi-point lock with two bolts and two power wedges
Multi-point lock with two bolts and two power wedges

MULTILOK-COMBI-SILVER-65-92-10-20

Combination locking with power wedges and bolts offers maximum security
x 1 pcs
Eneo CC electronic multiple lock
Eneo CC electronic multiple lock

MULTILOK-ENEO-CC-COMB-SILVER-LR-65-92-20

Combination lock with two bolts and two power wedges
x 1 pcs
