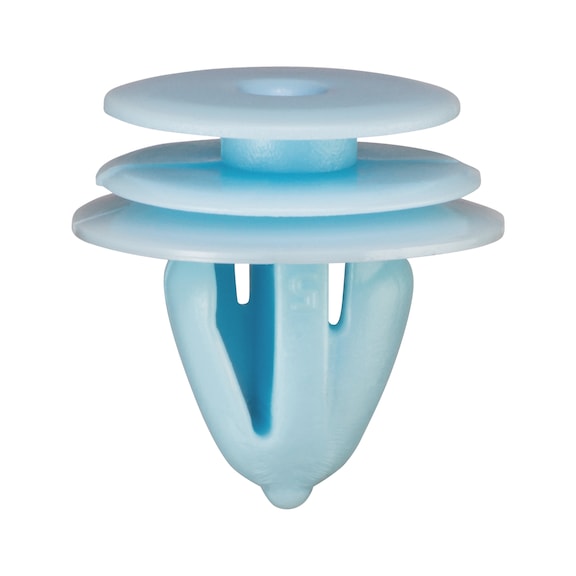

Interior trim clip, closed
INTRMCLIP-POM-BLUE-DM-17,8MM
Art.-no. 0500300160
EAN 4068362545245
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
For fastening trims to carrier components
- Pre-mount on the trim and then insert into a corresponding hole on the base component.
- Tolerance compensation is possible.
- The trim can be removed.
- Can also be used as a seal.
Product information
Datasheets(X)
Application area
For fastening trims to carrier components.
Instructions
Pre-mount on the trim and then insert into a corresponding hole on the base component.
 | |
Min./max. drill hole diameter | 7.8-7.9 mm |
Min./max. attachment thickness | 0.7-0.70 mm |
Head diameter (A) | 17.8 mm |
Length below head (B) | 12 mm |
Core diameter (C) | 7.9 mm |
Grip range head (D) | 1.3 mm |
Colour | Light blue |
Material | Polyoxymethylene |
Suitable for vehicle manufacturer | Hyundai |
Corresponds to original spare part number | 8231533020 |
Installation location | Bodywork |
Type of vehicle | Passenger car |
