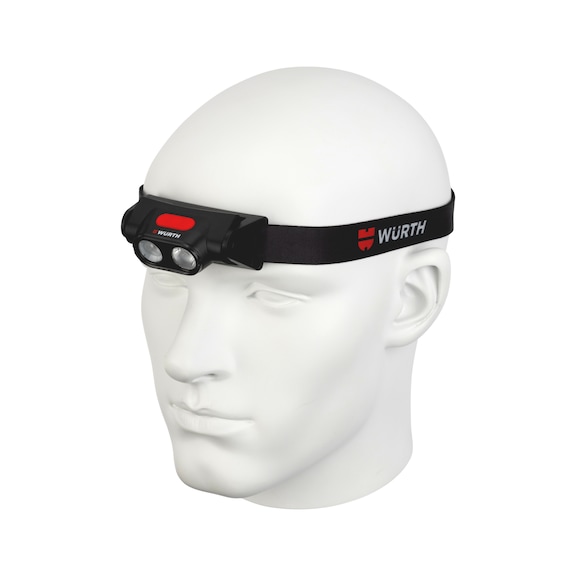

High-power LED head lamp WH5F
LED head lamp WH5F
HDLAMP-WH5F-LED-1XAA-220LUMEN
Art.-no. 0827809905
EAN 4068362162824
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Compact with 220 lumens, digital focus and front cartridge - lightweight and robust for precise lighting during use
- Ultra-robust design - fibreglass-reinforced polyamide housing (PA6GF30)
- Digital focus (2 separate lenses) - precise control and rapid light pattern adjustment with no moving parts - spotlight for focused long-range beam, low beam for wide distribution of light or both simultaneously
- Three light modes - power (220 lumens), mid power (100 lumens) and low power (20 lumens)
- Single front switch
- Deactivation function - lamp can be prevented from switching on unintentionally
- Battery cartridge at the front - no wires running along the side of the head band
- Hard gold plated contacts provide optimal protection against corrosion
- Uniform short-range beam (defocused) and concentrated long-range beam (focused)
- High degree of protection
- Swivelling lamp head

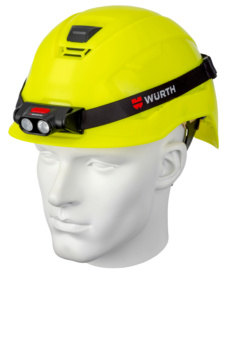

- Rubber lining on headband ensures firm grip on construction helmets
Notice
- Batteries not included in the scope of delivery
- Suitable for NiMH batteries
Application area
Product information
Datasheets(X)
Application area
Suitable for indoor and outdoor use - ideal for use with construction helmets.
Instructions
2x light flashes indicate that the lamp battery needs to be replaced.
Min./max. luminous flux | 20 / 220 lm |
Adjustable focus | Yes |
Lighting range min./ max. | 15 / 75 m |
IP protection class | IP 66 |
Impact resistance | IK07 |
Battery designation | Mignon AA; LR6; AM3 |
Number of rechargeable batteries/batteries | 1 PCS |
Min./max. operating temperature | -20 to 40 °C |
Material | PA 6 GF30 - Polyamide glass fiber reinforced |
