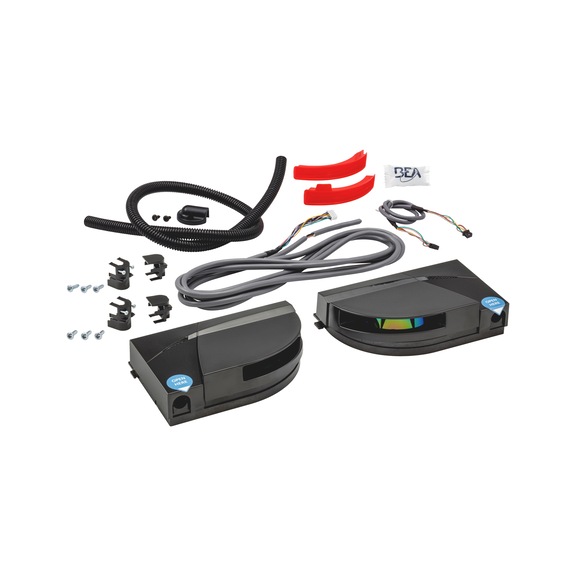

FlatScan 2D
Flatscan set
FLATSCAN-SET-BLACK
Art.-no. 0688007200
EAN 4099618120268
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Safety sensor for door leaf and secondary closing edge monitoring with laser sensors
- A single module per side is sufficient to secure the entire door leaf and the secondary closing edge, no matter the door leaf width or door height
- Automatic teach-in: direct surroundings of the door and type of floor
- The laser modules have an integrated 360° rotating mirror to detect door leaf movements and the secondary closing edge
- Self-programming wall fade-out function, greyscale adjustment
- Slim design
- Easy to install
- Adjustable tilt angle
Notice
For doors in public areas, additional finger guards or similar are recommended.
Delivery time: approx. 10 working days
Dimensions subject to change. Subject to technical changes
Product information
Datasheets(X)
Suitable for | ETS 64 R-IRM, ETS 73 |
Suitable for number of doors | 1 |
Type of assembly | Screw-on |
Mounting option | Hinge side, Opposite hinge side |
Material of housing | Plastic |
Length | 142 mm |
Width | 85 mm |
Height | 33 mm |
Colour | Black |
Min./max. temperature conditions | -30 to +60 °C |
IP protection class | IP 54 |
Environmental Product Declaration | No |
Standards | EN 60950-1, EN 61000-3-2, EN 16005, DIN 18650-1 |
