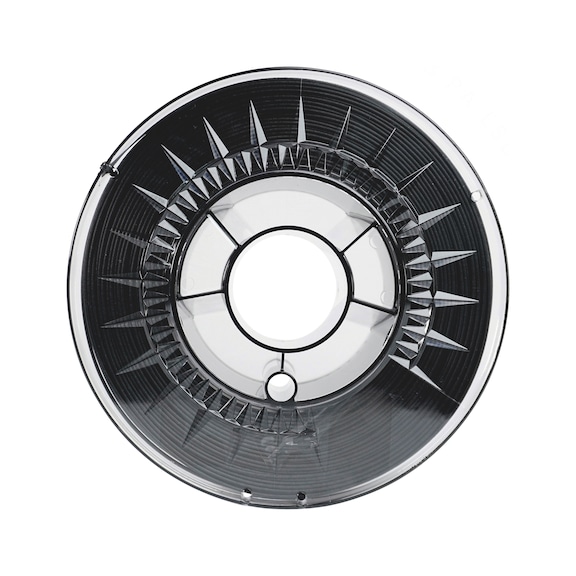

Fiberthree F3 PA ESD FFF printing material

• The carbon fibres minimise shrinkage, which reduces the risk of warping


• The material exhibits a very high level of strength with residual impact resistance, low warping tendency and very good layer adhesion


• The good heat and media resistance make it suitable for all applications for high-strength parts which should also exhibit ESD conductivity in the printed component

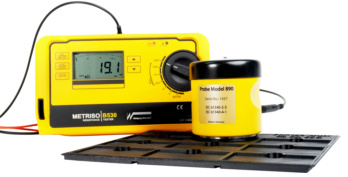

• The expected resistance (surface or contact) is less than 10ꝰ Ωcm in the printed component


• Attractive matt surface finish


• Tempering at 70 °C for several hours can increase the crystallinity of the polymer


• This increases the strength and resistance of the polyamide under warm and damp conditions

Advantages

• PA 6 (modified) with ESD conductivity


• Contains carbon fibres and conductive particles


• Very high strength and low warping tendency


• Good adhesion to printbed


• Matt black finish


• 10-5 to 10-9 S/cm conductivity when printed

Application instructions

• The use of abrasion-resistant nozzles is strongly recommended


• The filament must be stored and printed in a dry environment for the best printing results


• A drying box and drying agent/desiccant are recommended
