Electromagnetic hold-open device, double-leaf door With GTS 640 and integrated smoke detector - CSEQ-EFR-2--GTS640-DIN-R-WHITE - 5
Electromagnetic hold-open device, double-leaf door With GTS 640 and integrated smoke detector - CSEQ-EFR-2--GTS640-DIN-R-WHITE - 1
Electromagnetic hold-open device, double-leaf door With GTS 640 and integrated smoke detector - CSEQ-EFR-2--GTS640-DIN-R-WHITE - 2

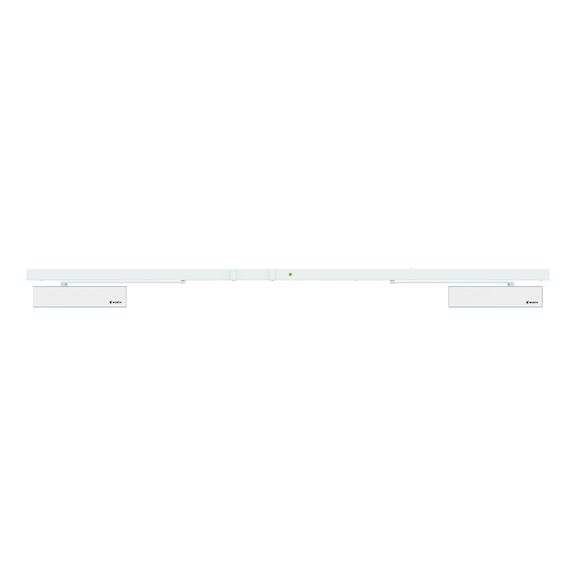

Electromagnetic hold-open device, double-leaf door With GTS 640 and integrated smoke detector

Closing sequence selector EFR-2 with GTS 640
CSEQ-EFR-2--GTS640-DIN-R-WHITE

Art.-no. 0688003813
EAN 4061975585479
All versions

Produkt vergleichen
-,--
price per selected packing unit | Individual prices for customers after login

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

Quick and easy assembly as all components are pre-mounted ex works.

Barrier-free in accordance with Spec 18040 and DIN SPEC 1104



The system complies with the latest testing principles


  • Magnet switch-off time in the event of an alarm min. 3 sec.

  • Overpressure capacity of system/door, can be set to below 80 N (for use without manual switch)

  • Circuit monitoring of ceiling detectors and manual switches


All electronic components in the sliding rail are fully pre-mounted, wired, and the assemblies checked ex works


Integrated smoke detector with contamination display and automatic calibration to avoid false alarms.



Quick mounting using only two screws per sliding rail


Using the supplied basic profile enables the same drilling pattern as with the sliding rails for the door closer



Locking hinged door / double-leaf door through integrated magnets


on both sides of inactive and active leafs or only the active leaf



Cable duct integrated into sliding rail


Easy routing of the connecting cable

Notice

The operator of the systems is required to commission the system after initial installation, to test it monthly for the first 12 months, and afterwards, if there are no functional defects, to test it every 3 months and perform a service once a year. Akademie Würth offers suitable seminars in this respect.



Delivery time for traffic white RAL 9016 and stainless steel surfaces approx. 10 working days.

Application area

Dimensions subject to change. Subject to technical changes.

Application area

For double-leaf fire doors, smoke protection, and anti-panic doors made of metal or wood.



The closing sequence control ensures that the closing sequence of the inactive and active leafs occurs in the specified order. In other words, the active leaf always closes after the inactive leaf. When opening the active and inactive leaf, the two magnets in the sliding rail ensure that both doors remain open. The smoke detector initiates the closing process in the event of a fire.

Area of application

Object area, Private area

Suitable for

Fire protection doors, Smoke protection doors, Panic doors

Suitable for number of doors

2

Fire protection certified

Yes

Suitable for barrier-free construction according to DIN 18040

Yes

Colour

Traffic white RAL 9016

Colour slide rail

Traffic white RAL 9016

Min./max. distance between hinges

1641-2500 mm

Suitable for min./max. door width of active leaf

850-1250 mm

Suitable for min./max. door width of inactive leaf

400-1250 mm

DIN direction

DIN R

Mounting option

Hinge side: standard mounting, With assembly base plate

Opening angle

170 Degree

Min./max. door closer size

2-5

Material

Aluminium / plastic / steel

Surface

Lacquered

Suitable for min./max. door thickness

40-120 mm

Locking range

80° - 130°

Closing speed

Infinitely adjustable by valve 170° - 0 ° hinge side normal assembly

Closing delay

Infinitely adjustable by valve 120° - 70 ° hinge side normal assembly

Latching speed

Infinitely adjustable by valve 10° - 0 °

Back-check action

Infinitely variable adjustable from 70 °

Min./max. temperature conditions

-15 to 40 °C

Standards

EN 1154:1996 + A1:2002, EN 1158:1997 + A1:2002, EN 16034, EN 16035, SPEC 1104

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Construction product

Yes

Included in delivery

2 x door closers, 2 x mounting base plates, 3 x sliding rails with basic profile, 2 x sliding rail arms, 1 x fastening material and installation instructions

Technical information
BA = hinge clearance
G = active leaf
S = inactive leaf
1: Drill hole for cables, 230 V connector
2: Drill hole for additional connections
Classification key in line with DIN EN 1154: 1996 + A1:2002
3/4 8 2 - 5 1 1 4
