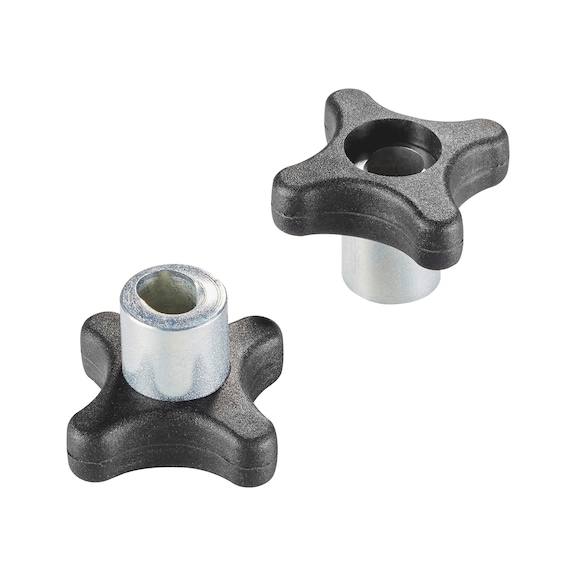

Cross handle with insert nut, quick-action
Polyamide steel zp with quick release insert nut
CRSHNDL-QUICK-BLCK-THRGHO-INRT-ZN-M8
W.TEC
Art.-no.
5094607001
EAN 4058794688092
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth trade store
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Polyamide, satin finish, galvanised steel insert nut
Cross handle with a fitted groove for quick opening of the connection. Swivelling the handle moves the mating thread into the groove, enabling the handle to be released quickly. The thread on which the cross handle is screwed must have a minimum length of Q2.
Product information
Datasheets(X)
 | |
Material of handle | PA - Polyamide |
Surface of the handle | Satined |
Material of screwing thread | Steel |
Surface of the screwing thread | Zinc plated |
Thread type x nominal diameter (d1) | M8 |
Bush outer diameter (d3) | 16 mm |
Head diameter (dk) | 40 mm |
Thread length (lg) | 22 mm |
Height | 26 mm |
Bush length (h3) | 14 mm |
Handle thickness (c) | 12 mm |
Product weight (per item) | 30.150 g |
