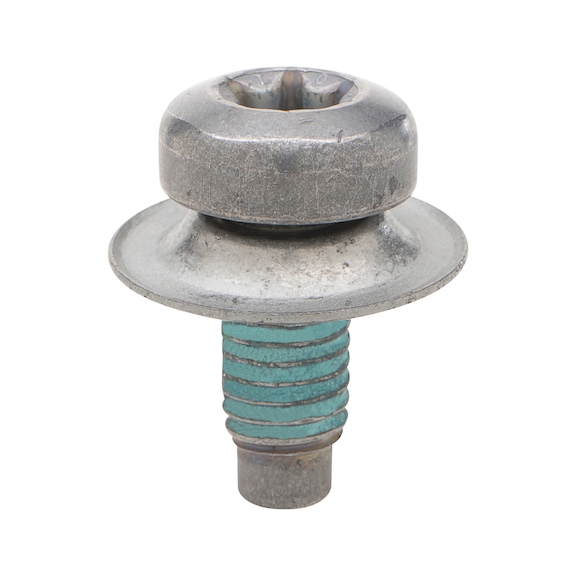

Combination screw M8x20 with loss-proof curved spring washer for underride guard
SCR-PANHD-8.8-TX45-M8X20-W.WASHER
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
For mounting the underride guard and underbody with a loss-proof curved spring washer for fast assembly without losing parts
- M8 x 20 mm, TX45, strength class 8.8, full thread
- Corrosion-resistant tested in the salt spray test NSS in accordance with DIN EN ISO 9227: ≥ 720 h
- Thread with MK85 coating according to DIN to work in conjunction with threadlocker
- The micro-encapsulated (MK) thread coating supports threadlocker and counteracts loosening due to vibrations
- In accordance with the manufacturer's specifications, the screw must be replaced every time the underbody protection is removed in order to ensure the required pre-tension force and secure connection and to minimise the risk of loosening, noise, consequential damage and customer complaints.
- Loss-proof curved spring washer holds washer on the screw
- OE reference: VW WHT 000 729 A
Notice
- OE reference number is used solely for identification purposes
- Assembly/tightening torque in accordance with the manufacturer's specifications
- Test value "NSS ≥ 720 h" as per test in accordance with DIN EN ISO 9227
- MK coating: Ideally, the counter surface should be cleaned and free of grease, so as not to impair the breakaway torques of the microencapsulation.
Product information
Datasheets(X)
Application area
- Suitable for corroded mounting points in the vehicle underbody
 | |

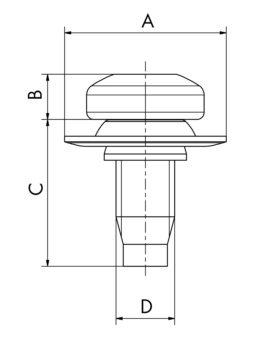

Thread type x nominal diameter | M8 |
Length below head (C) | 20 mm |
Head diameter (A) | 16 mm |
Head height (B) | 6.15 mm |
Head type | Flat head |
Washer diameter | 22 mm |
Material of washer | Steel |
Material of screw | Steel |
Surface of the washer | Zinc flake silver |
Surface of the screw | Zinc/nickel |
Drive type | Internal hexalobular |
Internal drive | TX45 |
Nominal diameter (D) | 8 mm |
Thread type | Metric thread |
Property class | 8.8 |
Thread design | Full thread |
ISO | 14583, 9227 |
Suitable for vehicle manufacturer | VAG, Volkswagen, Audi, Skoda, Seat |
Corresponds to original spare part number | WHT 000 729 A |
Installation location | Underbody |
Type of vehicle | Passenger car |
