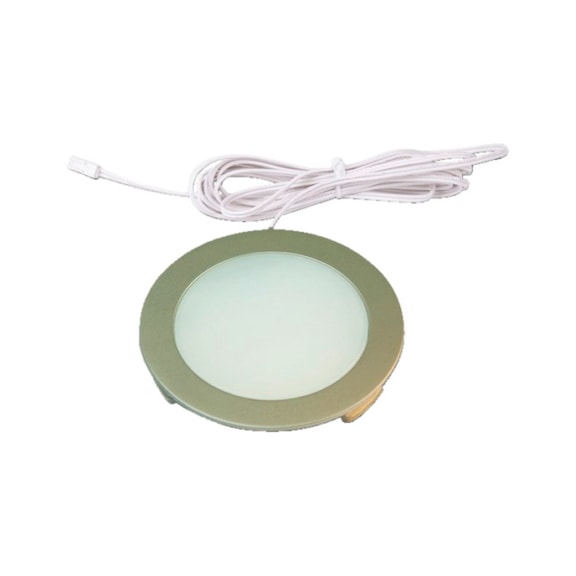

Built-in light EBL-24-2 - LGHT-LED-(EBL-24-2)-SSTCOL-NW

Built-in light EBL-24-2 - LGHT-LED-(EBL-24-2)-SSTCOL-NW - 1

Built-in light EBL-24-2 - LGHT-LED-(EBL-24-2)-SSTCOL-NW - 2

Built-in light EBL-24-2 - LGHT-LED-(EBL-24-2)-SSTCOL-NW - 3

Built-in light EBL-24-2 - LGHT-LED-(EBL-24-2)-SSTCOL-NW - 4

Built-in light EBL-24-2

LED recessed light EBL-24-2
LGHT-LED-(EBL-24-2)-SSTCOL-NW

Art.-no. 0976504033

EAN 4053479476186

All versions

Similar products

-,--
price per selected packing unit | Individual prices for customers after login

Built-in light EBL-24-2

Art.-no. 0976504033

-,--
price per selected packing unit

Quantity

PU

x 1 pcs

Show availability in Würth shop

Exclusively for trade customers

Register now and access more than 125,000 products

Locate shop
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Order together in one go - other customers often buy these products together

Please log in for price information.

The products shown are not necessarily compatible. Please always check the articles for the respective application purpose.

Flat LED recessed light for recessed mounting

Built-in light for installation diameter 68 mm

Available in chrome matt and stainless steel colours

Available in light colour warm white (3300 K) and neutral white (4000 K)

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

|


Lamp type	LED
Nominal voltage	24 V/DC
Material	Plastic
Colour	Stainless steel coloured
Type of assembly	For embedding
Power rating	4 W
Number of LEDs	36 PCS
Colour of light	Neutral white
Colour temperature	4000 K
Luminous flux	228 lm
Min. colour rendering index (CRI)	85
Height	13.5 mm
Outer diameter	75 mm
Installation diameter	68 mm
Installation depth	12 mm
Connection type	Plug-in system LD2
Cable length	2500 mm
IP protection class	IP 44
Protection class	Protection class III/safety extra-low voltage
Life time of illuminant	30000 h
Min. illumination	17 lx
Max. illumination	428 lx
Energy efficiency class	G
Included in delivery	1 x LED light incl. 2.5 m connection line with LD2 plug system

Additional accessory:

Product

Description

Quantity

PU

Price
/PU

Recessed rocker switch

SWTCH-EL-INSTALLATION-ROCKER-24V-15MM

Art.-no. 0976504485

Small, unobtrusive recessed rocker switch for drilling in

x 1 pcs

Mounting ring for EBL-24-2 and EBL-24-13

MNTRG-LGHT-LED-EBL-24-2/24-13-SSTCOL

Art.-no. 0976504041

For plugging in

x 1 pcs

Assembly spring for built-in lights For ceiling mounting

ASMBYSPG-(F.LGHT-LED)-ST-ZN

Art.-no. 0976504140

Suitable for built-in lights EBL-24-2 to EBL-24-7

x 1 pcs
