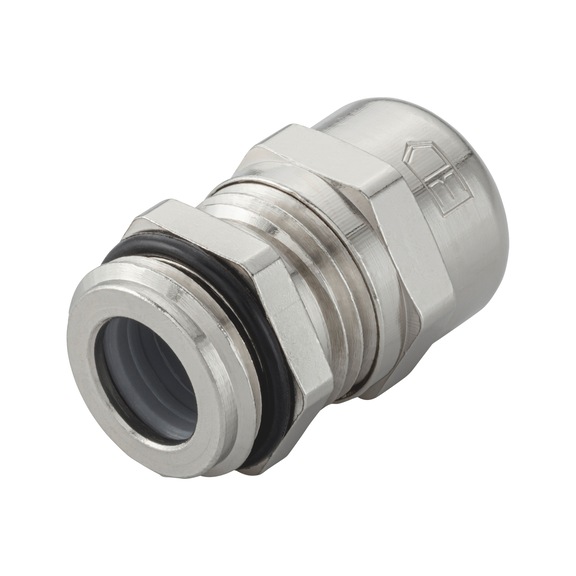

Brass, metric, EMC cable gland in accordance with EN 60423/EN 62444
Cable gland metric MS EMC
CBLGLND-BRS-(E2J)-EMC-WS17-M16X1,5
Art.-no.
0967762016
EAN 4065746745413
-,--
price per selected packing unit | Individual prices for customers after login
price per selected packing unit | Individual prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +49 7940 15-2400.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 125,000 products
Thread according to EN 60423
- Integrated strain relief
- Torsion guard
- Large sealing and clamping range
- Easy to install
- From M50x1.5 with O-ring
- DNV GL certified
- Made in Germany
Product information
Datasheets(X)
Application area
For cables and lines with shielding
 | |
Connection thread | M16 x 1.5 |
Min./max. cable diameter | 5-9 mm |
Thread length (metric thread) | 5 mm |
Width across flats (SW) | 17 mm |
Length | 30 mm |
Min./max. temperature conditions | -20 to 100 °C |
IP protection class | IP 68 |
Max. pressure | 5 bar |
Material | Brass |
Surface | Nickel plated |
Material of sealing ring | Polychloroprene nitrile rubber CR/NBR, halogenic |
Material of sealing ring for the connection thread | Nitrile natural rubber NBR |
Material of lamellar insert | PA 6 V-2 - Polyamide 6 V-2 |
