Base foot, height adjustable, plastic

Level. foot, height adjust. plastic
ADJLEVEL-PA-GFK-BLCK-M8-40X40X45-65MM

Art.-no. 4952600328
EAN 4056807474984

-,--
price per selected packing unit
| Individual prices for customers after login

Show availability in Würth trade store
Exclusively for trade customers

Register now and access more than 125,000 products

Compact base foot that can be levelled without tools for fastening to aluminium profiles
Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Material

PA - Polyamide

Material of screwing thread

Steel

Surface

0 - not applicable

RoHS-compliant

Yes

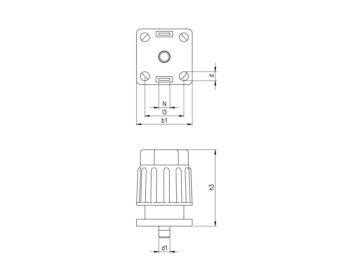

Suitable for flute width (N)

8 mm

Thread type x nominal diameter (d1)

M8

Diameter (d)

6.5 mm

Min./max. adjustment range (l1)

45-65 mm

Drill hole distance (l3)

28 mm

Disc height (h disc) (h3)

5 mm

Width (b1)

40 mm

Weight

78 g

Art.-no.
Cust. Mat. No.

Hazardous Material

Product information

Datasheets()

Datasheets ()

CAD data  |

Certificates/ Documents

 |

 |

Technical information
