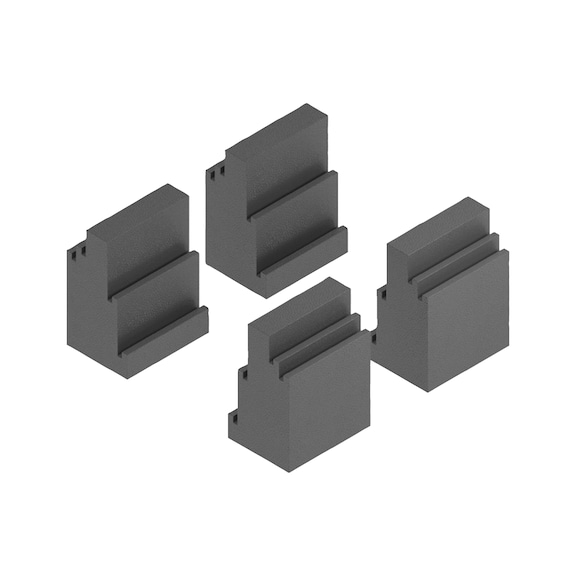

Assembly aid for frame system Vionaro V8 - ASMBYAID-VION-HARD-FOAM-SUPPORT Assembly aid for frame system Vionaro V8 - ASMBYAID-VION-HARD-FOAM-SUPPORT
Assembly aid for frame system Vionaro V8 - ASMBYAID-VION-HARD-FOAM-SUPPORT - 1
Assembly aid for frame system Vionaro V8 - ASMBYAID-VION-HARD-FOAM-SUPPORT - 2

Assembly aid for frame system Vionaro V8

Mounting aid for Vionaro V8
ASMBYAID-VION-HARD-FOAM-SUPPORT

Art.-no. F146134578

EAN 9003012906781

All versions

-,--
price per selected packing unit | Individual prices for customers after login
Assembly aid for frame system Vionaro V8

Art.-no. F146134578

-,--
price per selected packing unit
Quantity
PU
x 4 pcs

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

Report incorrect product information here

The assembly aid provides a simple and practical fixing aid for frames, bottom panels and back panels
  • Suitable for all nominal lengths and frame heights

  • For use with the light wooden clamp

  • Allows reliable fixing of components for safe punching of the bottom spike
Notice

To ensure that the bottom panel is flat, add an allowance of 50 mm under frame H250 and an allowance of 5 mm under frame Crystal.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Punch tool for bottom spike
Punch tool for bottom spike

PNCHTL-BOTTOMSPIKE-VIONARO-NOVA-PRO

Assembly aid for frame systems for safe and fast punching of the bottom spike
x 1 pcs
