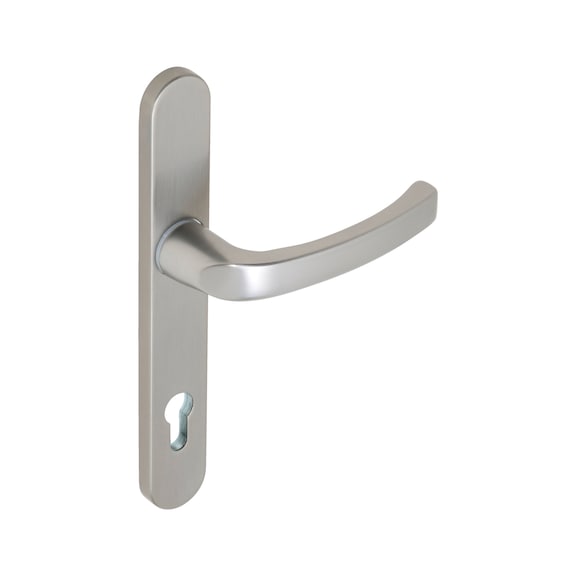

AL 900 door handle on outer plate With CK punch

Door handle AL 900 on outer plate with PC hole
DH-ALU-AL900-OUTS-H-CK-92-8-216-F9/(A2-O

Art.-no. 0687283510

EAN 4057708384358

All versions

Similar products

-,--
price per selected packing unit | Individual prices for customers after login

AL 900 door handle on outer plate With CK punch

Art.-no. 0687283510

-,--
price per selected packing unit

Quantity

PU

x 1 pcs

Show availability in Würth shop

Exclusively for trade customers

Register now and access more than 125,000 products

Locate shop
Login/Register
Call customer service: +49 7940 15-2400

Report incorrect product information here

Best possible hold, as the handle and the long plate are securely and invisibly attached using metric screws to ensure the best possible hold

Versatile combination options and low storage costs, as all articles individually available

Drill guard is located on the rear of the fitting

The metal fittings can be used in DIN R and DIN L doors without alteration

Notice

Fastening material, square pins and inside handles must be ordered separately.

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

|

|

Application area

For living areas and public areas (tubular frame doors, profile doors), plastic or metal house doors and side entrance doors.


Punched-hole	PC
Area of application	Object area, Private area
Suitable for	House doors, Profiled frame doors, Tubular door frames
Distance (from handle to lock)	92 mm
Fire protection certified	No
Bearing Technology	Door handle, fixed, Return mechanism
Material	Aluminium
Hole distance	216 mm
Door-plate width	36 mm
Colour	Stainless steel F9
Surface	Anodised
DIN direction	DIN R/L
Standards	EN 1906
Utilisation category	Class 4
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Insertion depth	40 mm
Handle length	145 mm
Cam diameter	10 mm
Suitable for min./max. profile-cylinder projection	9-13 mm
Door-plate length	245 mm
Label thickness	10 mm
Handle height inc. rosette/ label	64 mm

Classification key in line with DIN EN 1906: 2010-09
4	7	-	0	1	4	0	A

Required accessory:

Product

Description

Quantity

PU

Price
/PU

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-RAL901

Art.-no. 0687281012

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-F1/SI

Art.-no. 0687281212

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-F9/(A2

Art.-no. 0687281512

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL920-INSIDE-H-CK-92-8-210-RAL901

Art.-no. 0687282012

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-210-F1

Art.-no. 0687282212

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-210-F9

Art.-no. 0687282512

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-WHITE

Art.-no. 0687283012

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-F1

Art.-no. 0687283212

x 1 pcs

AL 900 door handle on inner plate With CK punch

AL 900 door handle on inner plate With CK punch

DH-ALU-AL900-INSIDE-H-CK-92-8-216-F9

Art.-no. 0687283512

x 1 pcs

Mounting set For tubular frame fittings on a long plate

Mounting set For tubular frame fittings on a long plate

MNT-SET-F.TUBLARFRMSET-(60-69MM)

Art.-no. 0688191940

x 1 pcs

Mounting set For tubular frame fittings on a long plate

Mounting set For tubular frame fittings on a long plate

MNT-SET-F.TUBLARFRMSET-(70-79MM)

Art.-no. 0688191942

x 1 pcs

Mounting set For tubular frame fittings on a long plate

Mounting set For tubular frame fittings on a long plate

MNT-SET-F.TUBLARFRMSET-(80-89MM)

Art.-no. 0688191944

x 1 pcs

Mounting set For tubular frame fittings on a long plate

Mounting set For tubular frame fittings on a long plate

MNT-SET-F.TUBLARFRMSET-(90-99MM)

Art.-no. 0688191946

x 1 pcs
