2C frame foam PURlogic® Turbo
2C door-frame foam PURlogic Turbo
DRFRMFM-2C-PURLOGIC-TURBO-210ML
price per selected packing unit | Individual prices for customers after login
Register now and access more than 125,000 products
Very quick to reach final strength
Reduces spreading time to 20 minutes, saving time and money
Good adhesive properties
Adheres well to various wall attachment and frame materials
Dimensionally stable foam
- No pressing during and after the hardening phase
- < 5% dimensional change
General test certificate from construction authorities
Complies with building material class B2 in accordance with DIN 4102, Part 1
Uniform, fine-celled foam structure
High degree of emptying
Resistant to ageing
Adheres to concrete, stone, hard PVC, metal and wood. Does not adhere to polyethylene, silicone, PTFE and grease. PURlogic® universal primer should be used for porous and absorbent substrates. One cartridge is sufficient for 6 mounting points, which is equivalent to one door frame. Immediately remove any fresh flecks of foam with PURlogic® Clean. Hardened foam can only be removed mechanically. Store upright cartridges in a cool, dry and frost-protected place. Protect from heating up to over 30°C. PURlogic® Turbo can be stored at +20°C for approximately 9 months. At higher temperatures, the storage time is reduced.
The usage instructions are recommendations based on the tests we have conducted and are based on our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

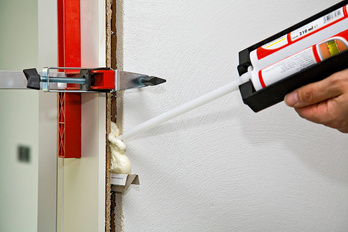

For high-quality and secure wooden and steel door frame installation and for window sill connections.
Adheres to concrete, stone, hard PVC, metal and wood
Door frames and masonry must be load-bearing, clean and free from oils, grease and dust. Gypsum and aerated concrete must be primed. One cartridge is sufficient for 6 mounting points, which is equivalent to one door frame. Immediately remove fresh foam stains with PURLOGIC Clean, art. no. 0892 160. Hardened foam can only be removed mechanically.
Chemical basis | Mix of polyether polyols, diphenylmethane-4, 4'-diisocyanate |
Colour | Light beige |
Smell/fragrance | Characteristic |
Moulded density | 45 kg/m³ |
Conditions for moulded density | foamed into joints, tested in accordance with Würth test methods |
Cell structure | Medium - fine |
Cell structure conditions | tested in accordance with Würth test methods |
Working life | 1 min |
Tack-free after | 1.5 min |
Conditions for being tack-free | tested in accordance with Würth test methods |
Can be cut after | 8 min |
Conditions for ability to cut | tested in accordance with Würth test methods |
Full resilience | 20 min |
Conditions for full resilience | tested in accordance with Würth test methods |
Final spreading possible after | 20 min |
Conditions for final spreading | at 20°C and 50% relative humidity, tested in accordance with Würth test methods |
Min./max. processing temperature | 10 to 30 °C |
Min./max. ambient processing temperature | 10 to 30 °C |
Min./max. surface processing temperature | 10 to 30 °C |
Min./max. processing temperature for can | 10 to 30 °C |
Min./max. temperature resistance | -30 to 80 °C |
Max. short-term temperature resistance | 100 °C |
Compression strength | 4 N/cm² |
Compression strength conditions | in accordance with DIN 53421, at 10% compression |
Min. combined tension and shear resistance | 5 N/cm² |
Conditions for combined tension and shear resistance | in accordance with DIN 53427 |
Min. tensile strength | 8 N/cm² |
Conditions for tensile strength | in accordance with DIN 53455 |
Elongation at break | 10 % |
Elongation at break conditions | in accordance with DIN 53455 |
Yield (volume) approx. | 5.5 l |
Conditions for yield | Tested in accordance with Würth test methods |
Contents | 210 ml |
Weight of content | 254.1 g |
Building material class | B2 - Normally inflammable |
Building material class conditions | in accordance with DIN 4102 |
Resistance against | Aging |
Shelf life from production | 9 Month |
Conditions to maintain shelf life from production | at 20°C |
